How I replaced a legacy warehouse tool by designing, building, deploying, and supporting an Arabic operational product end to end: collector trips, a live platform scale in the browser, photo evidence for every weighing, and a staged move from Supabase into the company's core API.
At the entrance to a warehouse, a van or truck drives onto a platform scale. The number on that scale is not a decorative metric. It is the beginning of a chain of operational facts: how much used cooking oil arrived, how much should enter inventory, what needs to be inspected, and what the company can later move or export.
The old Warehouse Center was making that chain difficult to trust. It had been started roughly two years earlier, had accumulated reliability and implementation problems, and was difficult for a new frontend engineer to continue. When the company no longer had a frontend engineer, I proposed a different path: rebuild the product myself.
I worked with a product manager who understood the operation on the ground. I owned the product from workflow and interface design through frontend, backend, database, API, hardware integration, deployment, and support. The result replaced the old application and became the Warehouse Center used in the operation.
The project tested whether a product designer with a computer-science background, an established design system, and an AI-assisted development workflow could take responsibility for a consequential internal product. The responsibility was not only to prototype it, but to connect it to real data and physical hardware, ship it, deploy it, and support it in daily use.
Tagaddod collects used cooking oil from households and businesses such as restaurants. Collectors bring those loads to a warehouse, but receiving the oil is only one part of what happens there.
Warehouse teams need to know which collector trips are running, which vehicles are expected to arrive, and what quantity each trip is likely to return. Some B2C trips begin with a warehouse visit because the collector needs to pick up the gifts exchanged with household customers. Warehouses also send and receive oil between one another and ship it to port. Quality teams inspect samples before material moves towards export, while managers need a dependable view of inventory and custody.
The warehouse therefore sits between several worlds:
A failure in the interface does not remain inside the interface. It can delay a vehicle, create doubt about a received quantity, or make the recorded inventory disagree with what is physically present.
The previous Warehouse Center had already consumed significant effort. That alone was not a reason to preserve it.
Its foundation made new work difficult. A frontend engineer who joined later encountered the same problems while trying to continue the application. When that engineer left for another opportunity, the company had no frontend person available to take on another rebuild.
Waiting would have kept a critical operation dependent on the old system. Adding another layer to the same foundation would have moved the immediate deadline while preserving the underlying risk.
I had graduated from computer science and had already built experience with AI-assisted coding. I was not claiming the depth of a senior engineer across every part of the stack. I did, however, understand how software systems fit together, and I could combine that understanding with product design, knowledge of our design system, and direct access to the operational problem.
The question was whether that combination could close the gap responsibly.
Continue the legacy product
Each new requirement inherited implementation problems from an application that another frontend engineer had already found difficult to extend.
Rebuild around the operation
The product model, receiving states, data boundaries, and interface could be defined together, then connected deliberately to the company's existing systems.
The product manager became my closest source of operational context. He knew how the work happened on the ground: which teams touched a trip, when a vehicle arrived, which quantities mattered, and where exceptions appeared.
We translated that knowledge into jobs rather than pages.
For a warehouse manager, the job was to find an arriving trip, compare the expected and reported quantities, verify what actually arrived, and close the receipt with confidence.
For a quality specialist, the job was to connect a sample or inspection to the right material and decide whether it met the required standard.
For an inventory controller, the job was to account for containers and material as they entered, moved through, or left the warehouse.
This gave me a small set of stable objects: warehouse, trip, request, load, scale record, quality record, tank, transfer, port shipment, sediment request, and custody permit. The screens could change. Those relationships had to remain coherent.
When a vehicle arrives, the warehouse worker needs to answer both "Is this the right trip?" and "What should happen next?"

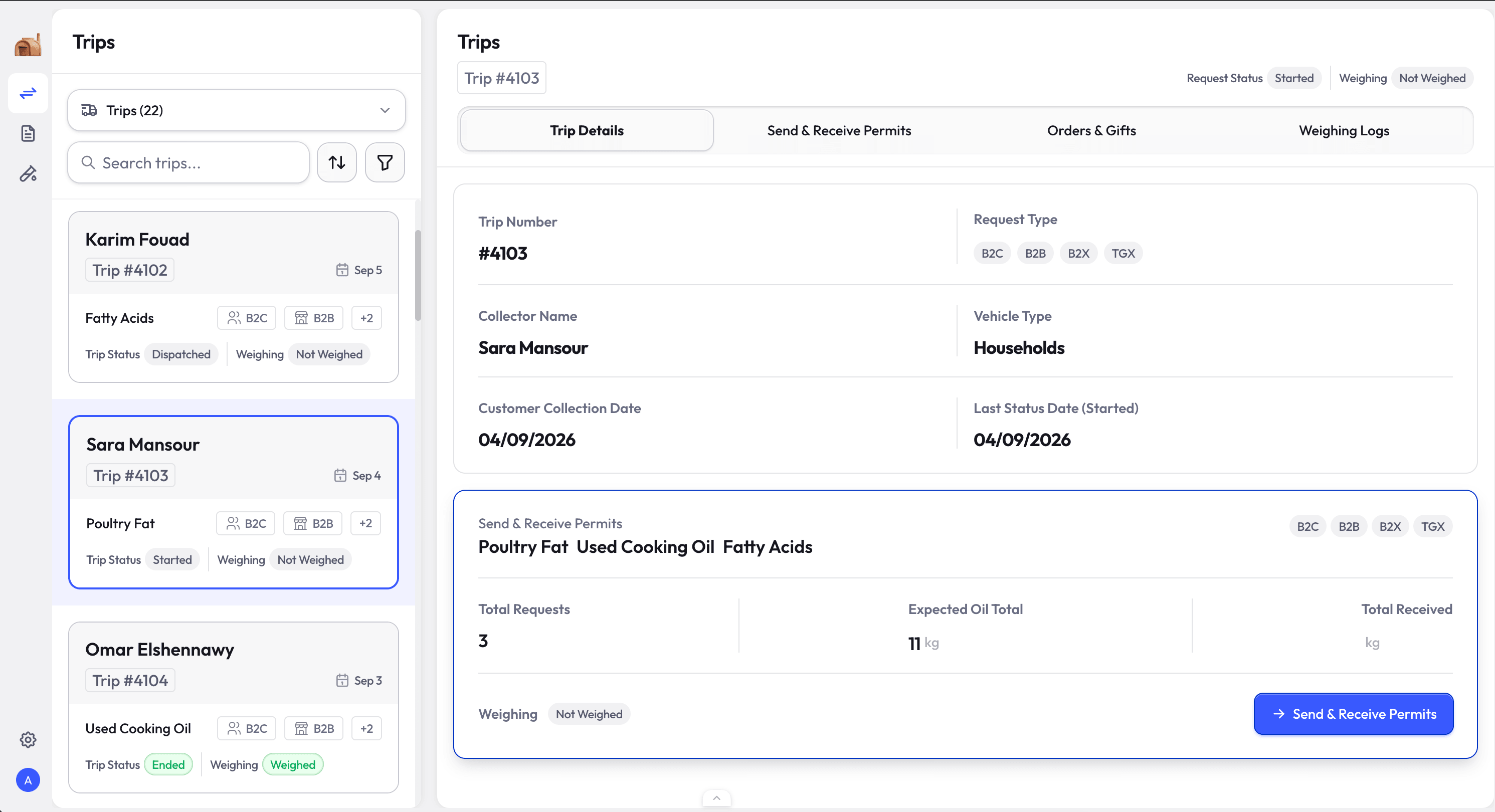

I used a master-detail structure for that reason. A list of trips stays visible on one side, with a filter drawer for date, channel, and trip status, a sort control, and a search by trip identifier scoped to the worker's own warehouse. Each card carries two statuses: where the trip is in the field workflow, and where the warehouse is in receiving it. Selecting a trip opens its context without sending the worker into a separate part of the product.

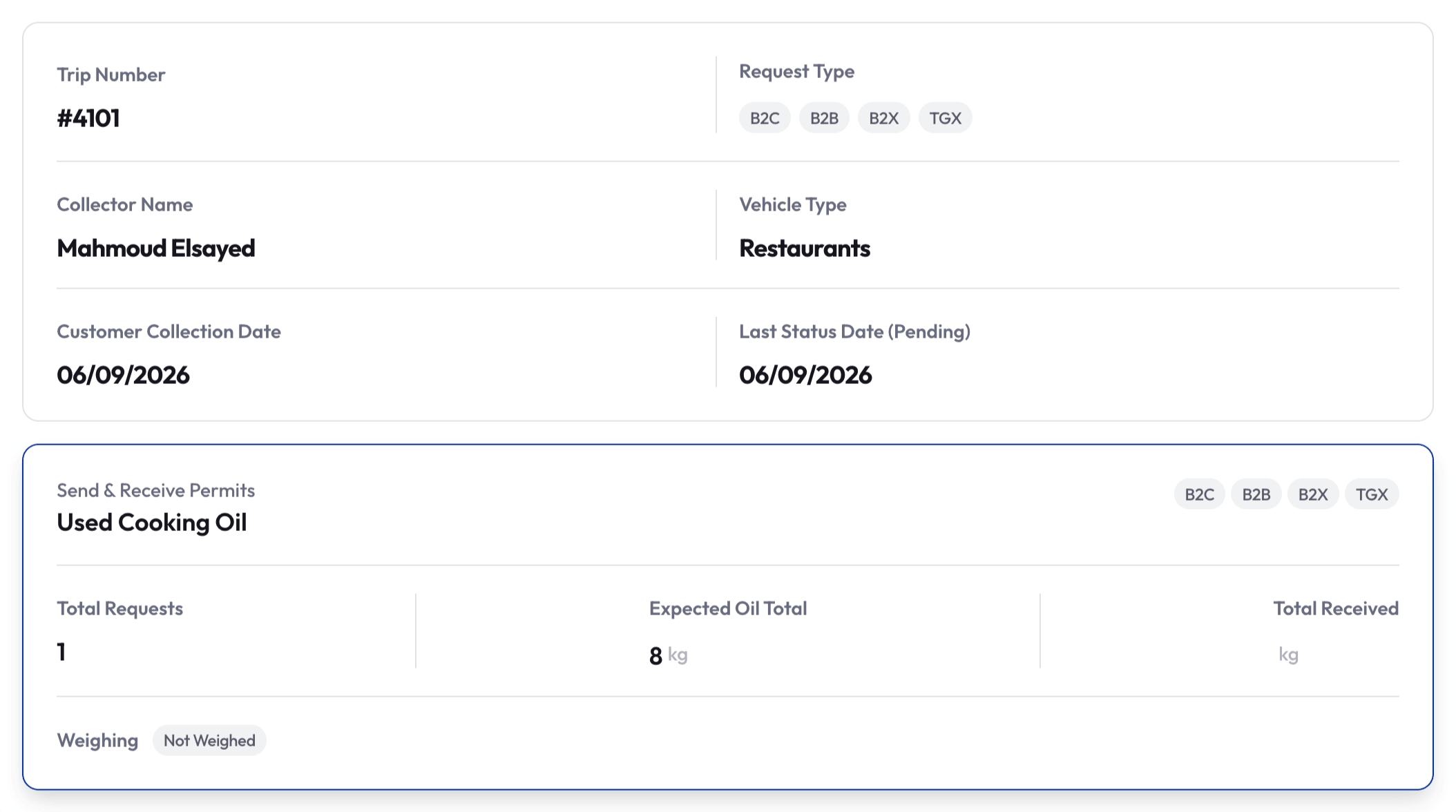

The detail view brings together the collector, vehicle, channels, dates, and the quantities that matter: what the requests expected, and what the warehouse has received. Its tabs are overview, receiving, orders, and logs. The receiving tab only appears while there is something to receive, which means a trip that has started or ended. Once a trip is received, its history lives in the logs.
This was more than a layout preference. Warehouse work is interruptible. A worker may need to check another arriving vehicle, compare two statuses, or return to a receipt after unloading. Preserving the list and the current context reduces the cost of those interruptions.
There are two receiving cases. They share the same trip context, quantity summary, final status, and log, but they establish the received quantity in different ways.
The rule that chooses between them comes from two facts, neither of which the interface invents. The core API classifies each channel of a trip as a scale flow or a default flow. The warehouse record says whether that warehouse has a scale. The client shows the scale workflow only when both agree. A trip at a warehouse without a scale falls back to manual confirmation even when the API would otherwise ask for weighing, and while a trip is still running only the scale-capable channels are surfaced, because a manual flow has nothing to do before the truck is back.
The manual path is a quantity verification, not a manually typed scale reading. When the trip carries an expected quantity, the form shows it read-only and asks one question: is the sent quantity correct?
Answering yes receives that amount at once. Answering no opens an editable field so the worker can enter what actually arrived. The value must be above zero, and it is rounded to whole kilograms because the core system stores an integer.
Completing the action creates the load in the core system, moves the quantity from the collector to the warehouse, records who completed it and when, and leaves no scale record because no weighing took place.

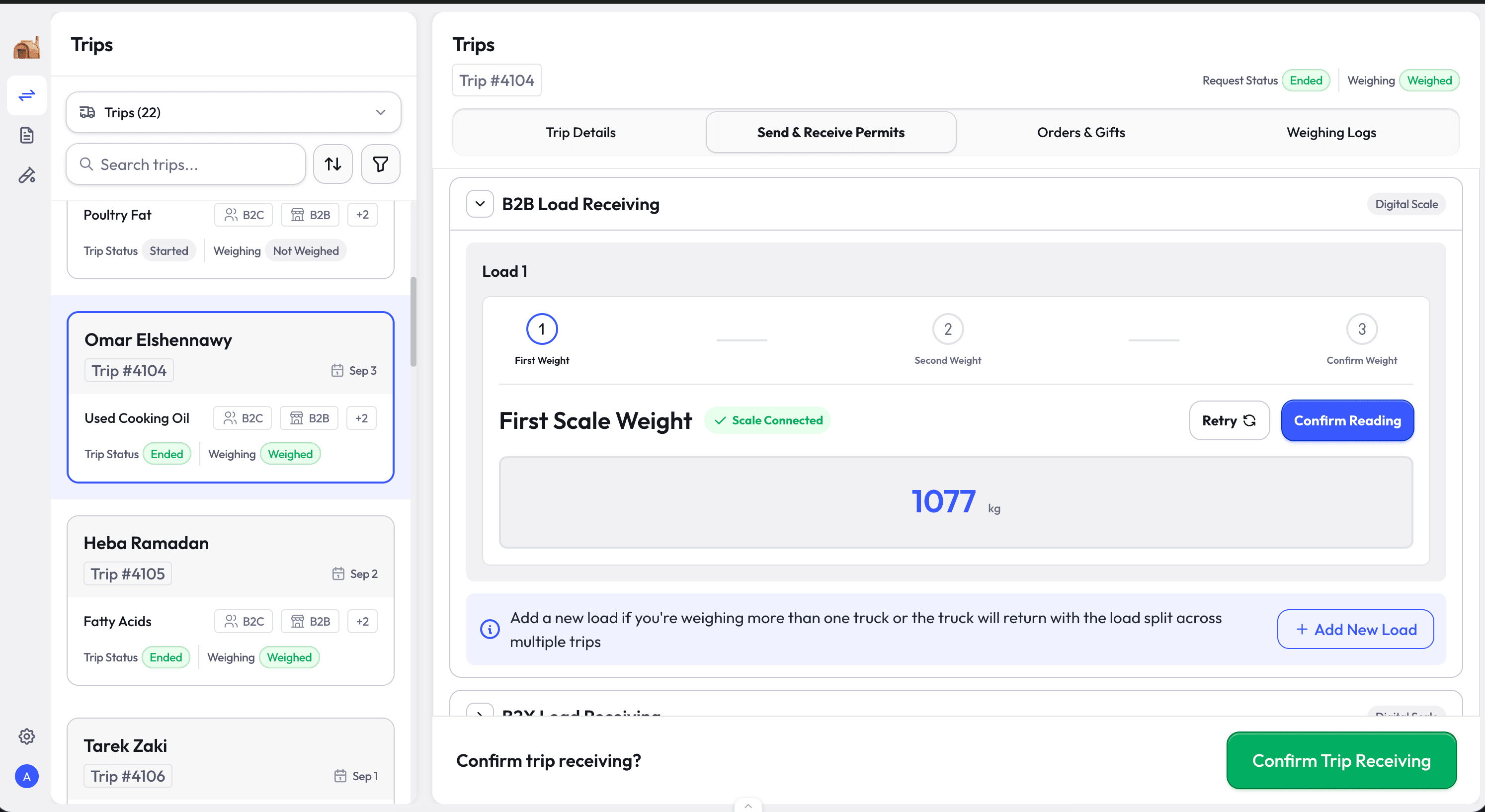

The scale path is used when measurement must be verified by the warehouse's connected platform scale. A loaded vehicle is weighed, the oil is unloaded, and the vehicle is weighed again. The difference produces the net received amount. If new empty containers were issued during the trip, their weight also needs to be removed from the calculation.
Placing both processes behind one generic "Receive" button would have hidden the rules that make each one trustworthy. I kept one shared entry point and gave each verification method its own explicit flow.
Keeping the decision on the server and the warehouse record, rather than in the interface, meant a second warehouse with a different setup needed no new screens.
The first version of the interface simulated the scale. That let me design the full sequence, exercise failure states, and test the calculation before the product depended on a physical device. The simulation is still there, behind an environment flag, so anyone can run the workflow without hardware.
The flow became a small state machine:
Every step needed a visible status, an actionable error, and a route back to a valid state. "Scale not connected" had to tell the worker to check the device and reconnect. A rejected weight had to say why. The confirmation step had to show the arithmetic.
A convincing simulated reading was not the goal. The production product had to read the actual platform scale.
I integrated the device through the browser's serial-port interface. The warehouse PC runs Windows, and the scale's indicator reaches it over a serial cable through a USB adapter. When the worker connects, the browser offers the ports that match a short list of common adapter makers, opens the chosen one at the scale's speed and framing, and starts reading. The scale sends a fixed eight-byte frame that begins with an equals sign and carries its digits in reverse order. The reader aligns on that byte, decodes the number, and puts it on screen. When a vehicle moves onto the scale, the number in the active receipt changes.
That integration changed how I thought about "frontend" work. The interface was not displaying a value that already existed in a database. It was participating in the creation of an operational record from a physical event.
It also created a new class of failure. The browser may not have permission to use the port. The cable or device may be unavailable. A reading can change while the vehicle settles. The trip can be in the wrong state even when the hardware is working perfectly.
The product needed to distinguish those problems. Treating all of them as "something went wrong" would send warehouse workers back to verbal workarounds and manual correction. And, as it turned out, the simulation could not tell me which of those problems a real warehouse would produce first.
The scale worked on my laptop. In the warehouse, on the Windows PC at the weighbridge, the reading stayed at zero. The operators had found a workaround of their own: unplug the adapter and move it to a different USB port until the number came back. That is not a workaround a product should depend on.
I could not reproduce it remotely, so I went to the site, pulled a development build onto the warehouse PC, and worked next to the scale with a loaded vehicle on it. The problems came out one at a time.
The scale was silent. The laptop's driver had been raising two control signals on the serial port automatically, and the Windows driver did not. The scale would not transmit until those signals were asserted explicitly, so the connection now asserts them after every open, and the read buffer was enlarged at the same time.
Then the bytes arrived, but the reading was still zero. I added logging of the raw bytes and could see the answer. The first read after opening the port caught a partial frame, and the parser was slicing fixed eight-byte chunks from that offset forever after, so every chunk was misaligned. The fix was to stop trusting offsets and instead scan for the equals byte that begins each frame, discarding whatever precedes it.
Then reconnecting failed. After a cable was unplugged and replugged, Windows held the port for a while and refused to open it again. Opening now retries with increasing delays. When every attempt fails, the browser is told to forget the port, so the next connect asks the operating system for a fresh handle instead of reusing a locked one. That is what removed the need to switch USB ports.
Then two smaller things. The forget call had been declared inside a try block and was unreachable from the catch, so it had never actually run. And a reset that fired on every re-render was zeroing the display while a load was being added, so the operator saw the weight drop for no reason.
By the end of the day the number on the warehouse PC matched the number on the scale's own display, and it stayed there through a cable pull. The monitor that watches for the device to come back and reconnects to it came out of the same session.
The assistant that wrote most of the serial code could not see that a signal was not being asserted. A person standing next to a zero could. The combination fixed it in a day.
A weight is a claim about a physical event. The workflow attaches evidence to it in two ways, and neither can block the weight from being saved.
The first is manual. At each weighing step, the worker can take a photo from the device in front of them. The file is size-checked and uploaded straight to storage, and its address is kept with the scale record.
The second is automatic. A camera watches the platform, and a server-side function asks it for a still at the moment each weight is captured. The camera sits behind digest authentication and will not talk to a browser directly, so the function performs the handshake itself, fetches the image, stores it, and returns the address. The client calls that function and moves on.
Both paths are deliberately non-blocking. A camera failure never prevents a weight entry from being saved; the record simply has no picture. The stills appear later in the logs beside each weighing, where they can be opened at full size.
The new product needed data before every connection to the core system was ready. The core API existed and already owned trips, but it did not yet expose the operations the warehouse needed, and I did not want the interface to wait on that.
So the product launched on Supabase. Its data model was quick to establish, easy to inspect, and legible to an AI coding assistant. Trips were mirrored from the core API into Supabase tables and read from there. Quality submissions, tanks, and everything else lived in Supabase outright. That let the warehouse start using the product while the deeper integration was worked out with the engineers who own the core API.
Then it moved, module by module, as the core API grew the operations each one needed. The first cutover took quality submissions and tanks. The second took the trips themselves, with a full receiving pipeline of mutations for creating loads, recording each scale step, and receiving the trip. The mirroring went away with it. Inter-warehouse transfers followed, then port shipments, then the daily digest.
Some things stay on Supabase by design. The raw laboratory measurements behind each computed quality value, the photos and camera stills, the audit log, notes, the sediments module, and the scheduled emails all live there, because the core system has no place for them and they are not part of its truth.
The client for the core API is a small hand-written wrapper: one request function that attaches the bearer token and the worker's language as headers, and a normaliser that turns the server's enums and casing into what the interface expects. In development a Vite proxy fronts the API. In production nginx does the same, so the browser never has to negotiate CORS with a different origin.
The important boundary was ownership of truth. Supabase accelerated the build; the API integration made the Warehouse Center part of the existing company system rather than a separate warehouse ledger.
The receiving flow is the spine of this story, but it was one of several modules that shipped, and the others are where much of the daily use happens.
Quality specialists test a sample by weighing an empty beaker, the beaker with the sample, the beaker after boiling, and the beaker with the sediments that remain, and by titrating with a measured volume of potassium hydroxide. The form takes those raw measurements and computes free fatty acids, moisture, and impurities as they are entered, with optional fields for sulphur, chlorine, phosphorus, and unsaponifiable matter, and a classification of the sample.
The computed values go to the core API, which is the system of record for quality. The raw measurements go to Supabase, so a result can always be traced back to what was on the bench. Submission is deferred to an explicit action rather than firing on every keystroke, and every submission is audit-logged.
The same form serves several sources through one switcher: collector trips, transfer requests, port shipments, and sediments, with scrap ready to be switched back on. Two changes came straight from the laboratory. The upper limit on the parts-per-million fields was too low for real samples and was raised, and the order of the classification options was reversed to match how specialists read them.

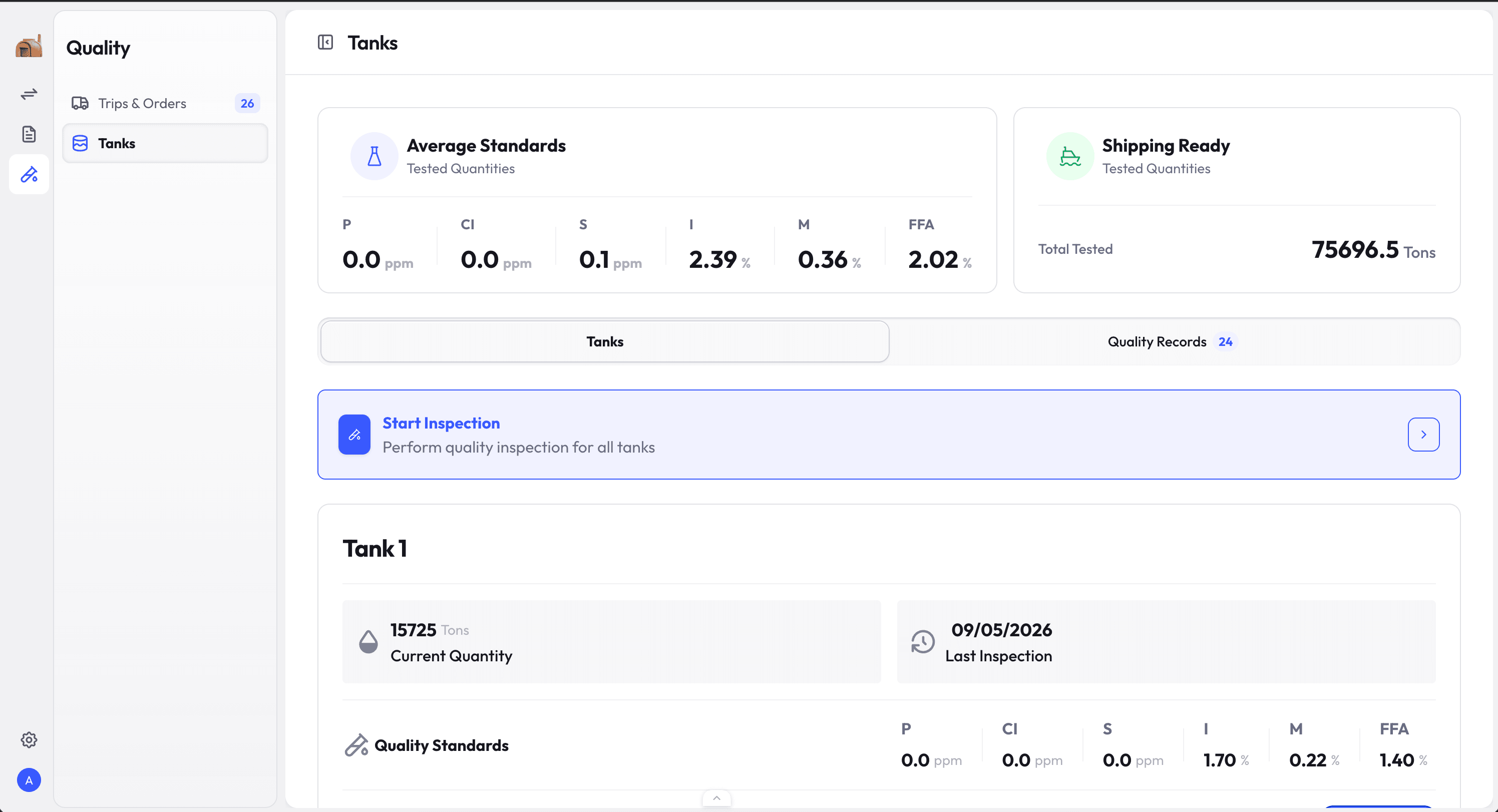

Each storage tank shows its latest inspection and a quality summary. Metrics are weighted across the tested quantity on the server, and a card shows how much is ready to ship. Inspections can be recorded for several tanks at once, and a records tab lists past inspections by quarter.
A transfer has a sending side and a receiving side, and the same scale workflow runs on both. Quality is split by viewer: the sender sees its outbound loads, the receiver sees inbound, and each card's inspection badge is derived from the loads that viewer is responsible for. One early fix made requests visible to the receiving warehouse, which had only been able to see what it sent.
Shipments to port carry sends and returns. A return can be redirected to a different warehouse, and that warehouse then sees the return in its own quality view. Reminder emails go out on the shipping date.
Sediment requests from providers come with their own inspection form, filters, and email notification. This module still runs on Supabase.

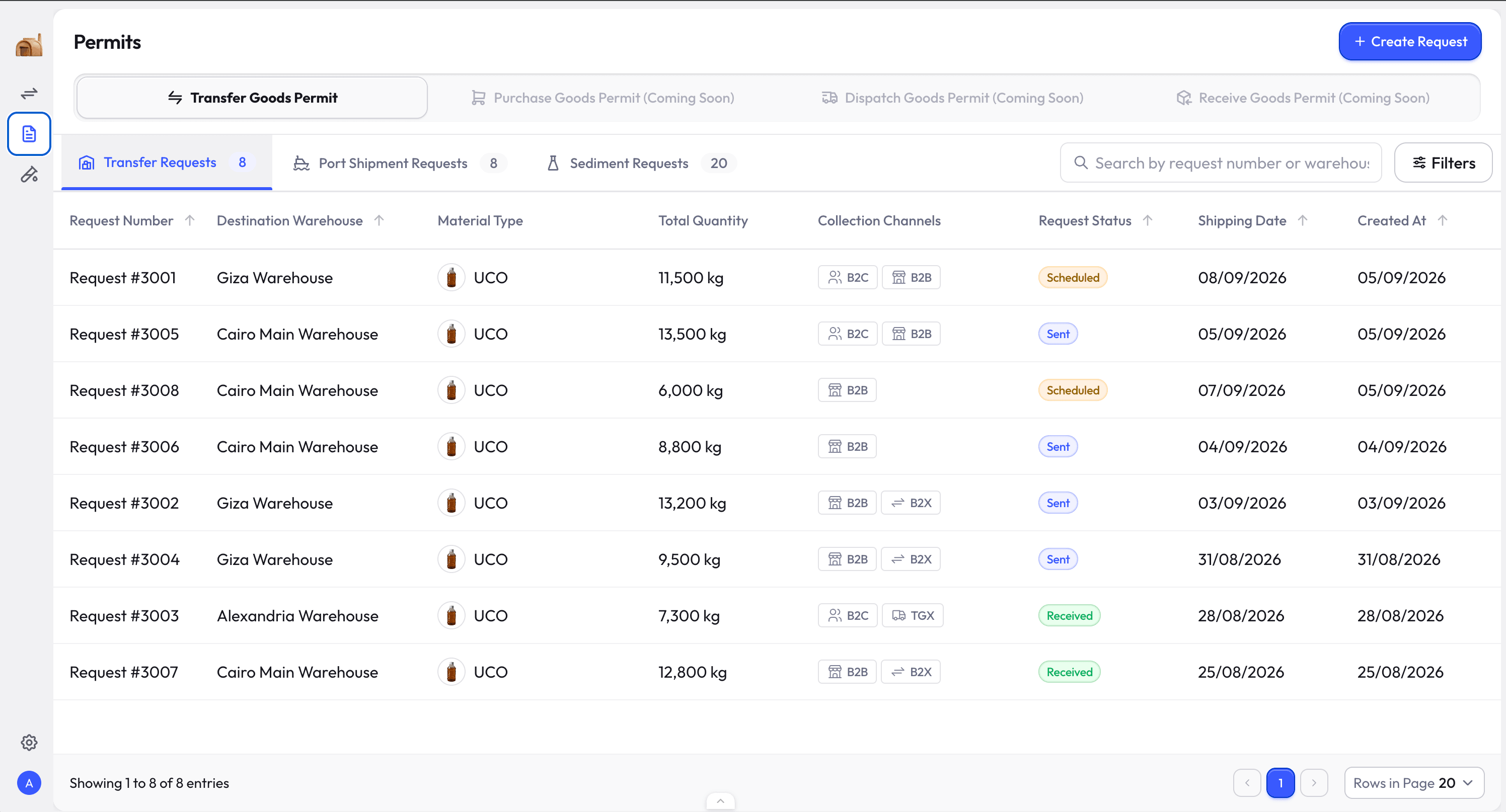

The custody area lists transfer permits in a table, with creation drawers for transfers, port shipments, and sediment requests. Three further permit types are shown as coming soon rather than hidden, so the shape of the area is visible before it is complete.
Seven server-side functions handle what leaves the app: the camera capture, transfer and shipment emails with their reminders, sediment emails, and a daily stakeholder digest. The digest renders the same quantity and quality chapters as an in-app preview, reads only the core API in two-week chunks to stay under the CDN's gateway timeout, and is scheduled by a database cron at a fixed local hour. That schedule is written in UTC, so it has to be re-pointed at each daylight-saving switch, which the migration says in its first line so the next person knows.
Uploading a product to a warehouse is not the same as building one. The app is built in a Docker stage and served by nginx from a second, smaller image. A Jenkins pipeline running on a Kubernetes agent builds the image, pushes it, applies the manifests, waits for the rollout to finish, and invalidates the CDN cache. A colleague on the infrastructure side bootstrapped that pipeline on launch day; I have maintained it since. Staging deploys from one branch and production from another, so every merge to the main branch is a release.
The most instructive incident was not a bug in the product. After a deploy, operators kept seeing the previous version. Their browsers had cached the entry document and, in some cases, a service worker left behind by an earlier mock-data tool was serving a stale bundle outright.
The fix was a set of cache rules rather than a code change. The entry document and the version file are served with no-store, so a browser always asks for them again. Hashed assets are served as immutable for a year, because their names change when their contents do. The app unregisters any leftover service worker at startup. And the pipeline now waits for the full rollout and invalidates the CDN before reporting success, so nobody is told a deploy is live while a stale copy is still being served.
Warehouse Center was the first consequential test of the coded Tagaddod design system and the AI workflow around it, and it is worth being exact about how the two relate.
The product does not import the component library. It carries its own copy of the token layer and implements its own components against it, built on Radix primitives, so the colours, spacing, type, and reading direction are the design system's while the component code is the product's. A trip card that combines a collector, vehicle, channels, quantities, and two kinds of status, a scale panel with live measurement states, and the custody and quality views were all composed under the same token, accessibility, and RTL rules. That is a weaker coupling than importing the library. It kept the product free to move quickly, at the cost of re-adopting fixes by hand.
The feedback moved in both directions. The design system's tokens and rules made the first version faster and more consistent. Warehouse Center exposed the screen-level knowledge an AI agent still needed: how to compose master-detail layouts, who owns scrolling, where filters live, how an RTL navigation shell behaves, and what to do when a domain component does not exist yet.
Those lessons informed the MCP, design guide, and agent skills that later made the library easier for product managers, designers, and engineers to use.
A component preview
A library story could prove that a component rendered, changed theme, and supported RTL in isolation.
An operational proving ground
Warehouse Center tested whether those tokens and rules could hold up under live hardware, dense operational state, custom workflows, existing APIs, and daily Arabic use in one product.
Claude Code helped me move across a surface area that would normally be divided between several people. It could turn a defined flow into React components, connect data, write a server-side function, investigate errors, and help iterate on unfamiliar integration work.
That did not remove the need for product or technical judgement. An assistant could not decide which warehouse record was authoritative, whether the second weight should be allowed before a trip ended, or whether a generated interface matched the way people worked on the floor. It could not walk into the warehouse and notice that a serial signal was not being asserted. The day the scale read zero was fixed by an assistant and a person standing next to the hardware, and neither would have managed it alone.
I used specifications and constraints to keep the work grounded. Component documentation told the agent which APIs existed. Design tokens prevented local visual invention. Arabic and RTL rules made direction part of implementation, not a final flip. Product states and validation rules turned operational knowledge into conditions the application could enforce.
Then I ran the product, tested the workflows, connected real systems, and fixed what failed.
The same loop built infrastructure, not only screens. Late in the project the app gained an offline mock environment: every network call intercepted at the three modules all traffic passes through, a synthetic bilingual seed for every screen, a build plugin that fails the build if a mock module ever leaks into production, and a smoke test that drives the real services through the mocks. That smoke test caught two real bugs on its first run, including an encoding call that crashed on an Arabic inspector name.
The useful capability was not autonomous code generation. It was the ability to hold product design, implementation, and verification in one tight loop.
The product reached the warehouse and fully replaced the previous application. That adoption mattered more than whether every screen matched its first design.
Real use exposed issues that no specification had anticipated, and because I owned the product across design and implementation, the path from observation to fix was short. We did not need to collect every problem, explain it across several handoffs, and wait for a later sprint before responding. I could inspect the failing state, correct it, and return the change to use.
Most of those fixes were the operation correcting the product:
That operating model had limits; one person should not become the permanent unreviewed owner of every critical system. In this project, however, continuity was valuable. The same person who understood why a workflow existed could trace how it had been expressed in the interface and code.
The old Warehouse Center stopped being the product people had to work around. The replacement became the system used in the warehouse operation.
Warehouse workers could connect an arriving trip to the correct receiving method, move through Arabic workflows, read the live platform scale in the browser, attach evidence to every weighing, and turn the result into a traceable receipt. Quality specialists, tank managers, and the teams handling transfers, shipments, and custody worked in the same product. It was connected to the company's core API instead of remaining a standalone prototype, and it was deployed and kept current by a pipeline I could operate myself.
The project also provided production evidence for a broader organisational idea: AI-assisted products did not have to look and behave like unrelated templates. When the design system, MCP, skills, and product rules were present, an independently built application could remain recognisably part of the same product family as designer-led work.
Outcome
The company did not maintain a controlled before-and-after time study or a reliable baseline for defect rates. Adoption, full replacement, direct operational use, and support observations are presented as the evidence; I am not converting them into an invented efficiency percentage.
I proposed the rebuild and worked with the product manager to translate the warehouse operation into product requirements and executable states.
I modelled the workflows and data, designed the Arabic interface, implemented the frontend and backend, established the initial Supabase foundation, wrote the server-side functions, and moved the product onto the company's core API module by module. I integrated the physical scale and the camera through the browser, took the build to the warehouse to fix what only the real hardware could show, maintained the deployment pipeline, supported the rollout, and fixed what appeared in use. Late in the project I built the offline mock environment so the product could be prototyped and tested without the backend.
The design-system work sat underneath the build. I used its tokens, rules, documentation, MCP, and skills, then carried what Warehouse Center taught me back into that system.
Warehouse Center began as a response to a difficult legacy application and a missing frontend role. It became a test of a larger possibility: whether design, code, AI assistance, and operational knowledge could be held together closely enough for one person to ship a real internal product.
The answer was not that AI made engineering trivial. The answer was that clear product models, executable design rules, technical foundations, and immediate contact with real use made the boundary more navigable.
The decisive moment was not when the interface looked complete. It was when a vehicle moved onto the warehouse scale, the zero on the warehouse PC became a reading, the workflow responded, and the resulting record joined the rest of the company's operation.
That is where the product stopped being a prototype.
